Extrusion Welder Specifications:
| Model | SWT-NS600E | SWT-NS600F | SWT-NS610E |
| Voltage: | 220V/110V |
| Frequency: | 50/60HZ |
| Exruding Motor Power: | 800W | 1200W | 1300W |
| Hot Air Power | 3400W |
| Air temperature: | 20-620°c |
| Extruding volume | 2.0kg/h | 2.5kg/h | 2.5kg/h |
| Welding Rod Diameter | 3-4mm |
| Net Weight: | 6.5kg | 7.0kg | 7.0kg |
| Driving Motor | HITACHI | FEIJI | METABO |
| Material thickness | 1-10mm |
Operation Procedure:
1) Put the hand extruder on the shelf, install the handle, plug in the mains plug.
2) Open the control box switch, welding temperature is generally set at 300°C, when the
temperature reach 270°C, the motor switches off, you can not start, when the temperature reaches
270°C, the motor switch is turned on, you can start properly. Open the hot air machine power
switch, thermostat knob, heated a few minutes to operate.
3) the right hand pull the motor switch, the motor starts to rotate. The new tool noise, probably it
mostly is relevant to the resonance between the tool and the base or the close of the parts inside
the tool.If the motor is very smooth, and the internal sound disappears after sending welding rods.
4) It is better to re-standby 5 to 6 minutes after ensuring the motor can be started.Then put welding
rod into machine to operate.Adjust the temperature carefully depending on the thermoplastic case.
5)motor’s rotating speed is fast without thermoplastic and will become heavier when sending
welding rod, if become very difficult, please stop, probably screw heating time is too short or low
temperature.
6) different welding methods require different welding nozzles, our company provides a standard
nozzle.

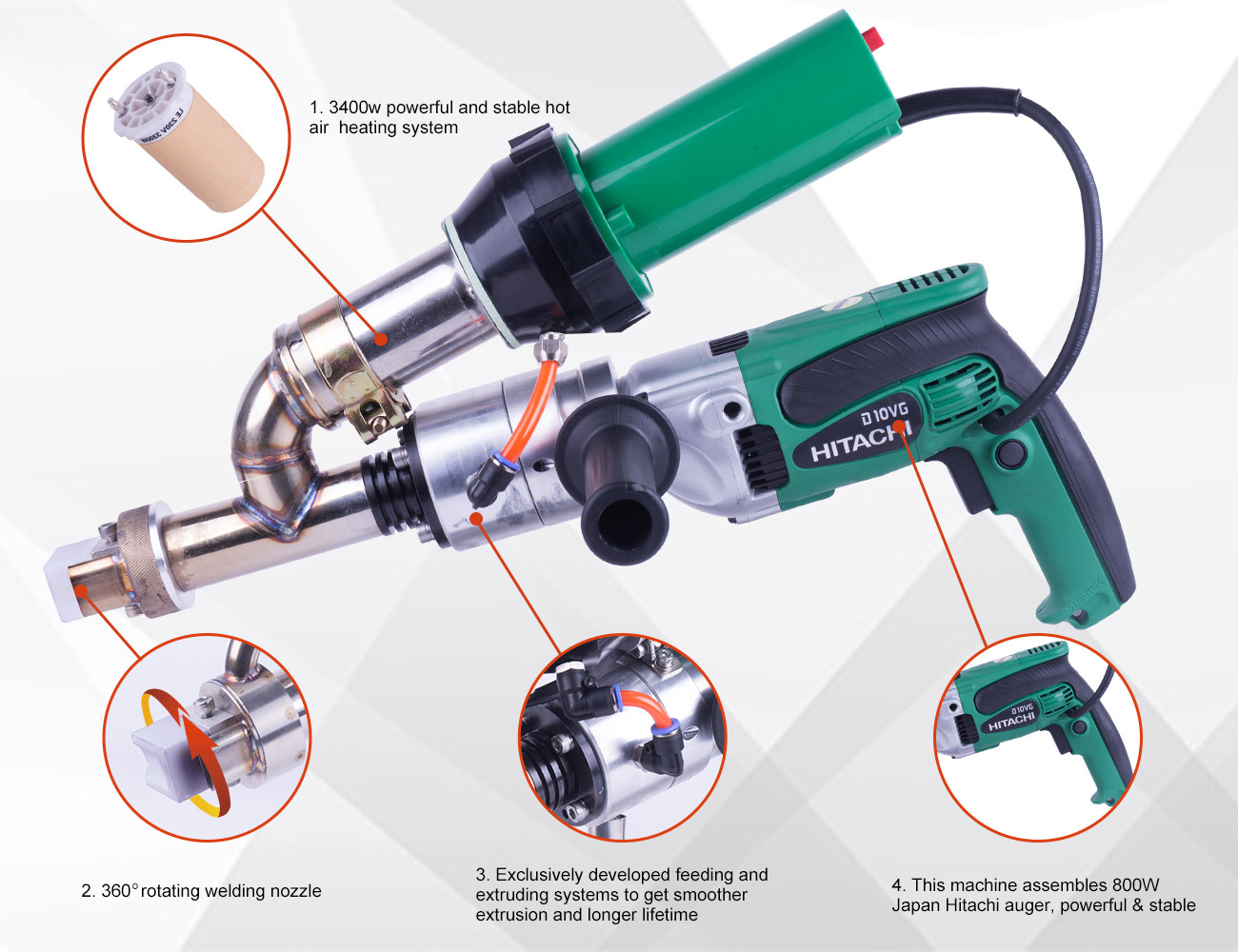

Decomposition of image:
Extrusion Welder Application:
Accessories:
Services:
We always provide high quality products and workable price for every clients and have won the confidence and approval.
Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
